SpringBoot2如何开启Actuator端点监控
背景SpringBoot本身提供了一套监控端点,可以查看应用的基本信息、健康程度、配置等监控信息,很容易上手。Note:此处所用SpringBoot版本:2.1.4开启Actuator在Maven的pom.xml文件中添加spring-boot-starter-actuator依赖:org.springframework.bootspring-boot-starter-actuator直接运行项目,在后端控制台会看到以下输出:2019-06-2618:07:27.896INFO7868---[restar
背景
SpringBoot本身提供了一套监控端点, 可以查看应用的基本信息、 健康程度、 配置等监控信息, 很容易上手。
Note: 此处所用SpringBoot版本: 2.1.4
开启Actuator
在Maven的pom.xml文件中添加 spring-boot-starter-actuator 依赖:
org.springframework.boot spring-boot-starter-actuator
直接运行项目, 在后端控制台会看到以下输出:
2019-06- 26 18: 07: 27.896 INFO 7868-- - [restartedMain] o.s.b.a.e.web.EndpointLinksResolver: Exposing 2 endpoint(s) beneath base path '/actuator'

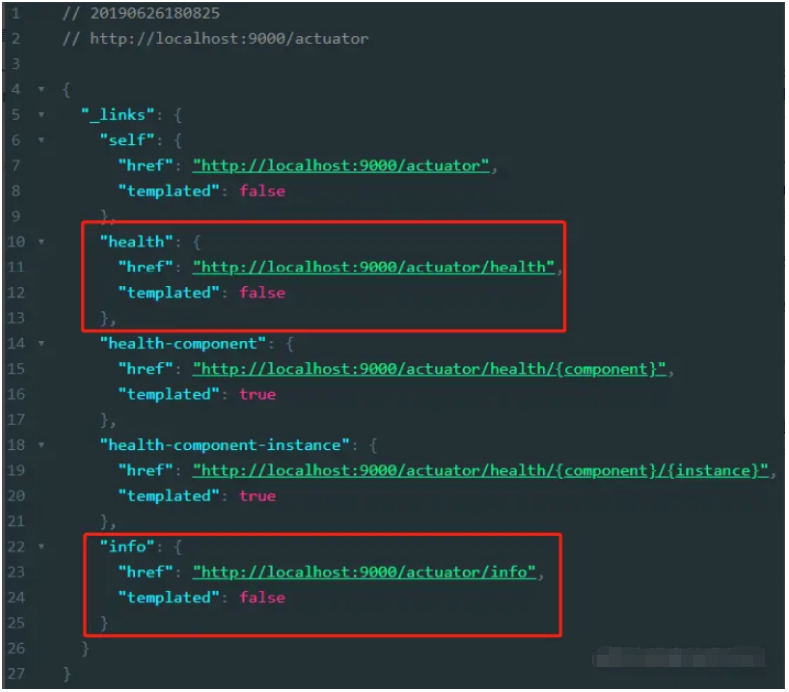

在浏览器访问 http://localhost:9000/actuator , 结果如下:

即SpringBoot2.0的actuator启动端点监控web端默认加载默认仅info, health两个可见的端点(除了actuator本身之外), 见官方文档说明
暴露其他端点(与SpringBoot 2.0之前的配置不太一样)
management: endpoints: web: exposure: include: "*" exclude: env,beans
以上配置暴露了除 env , beans 之外的所有端点; 修改配置后, 在后端控制台会看到以下输出:
2019-06-26 18: 16: 03.951 INFO 7868-- - [restartedMain] o.s.b.a.e.web.EndpointLinksResolver: Exposing 13 endpoint(s) beneath base path '/actuator'

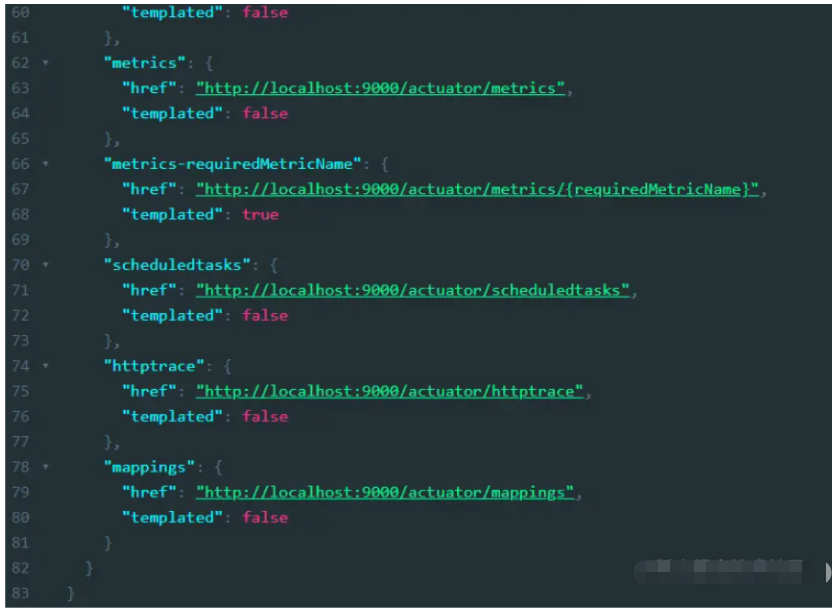

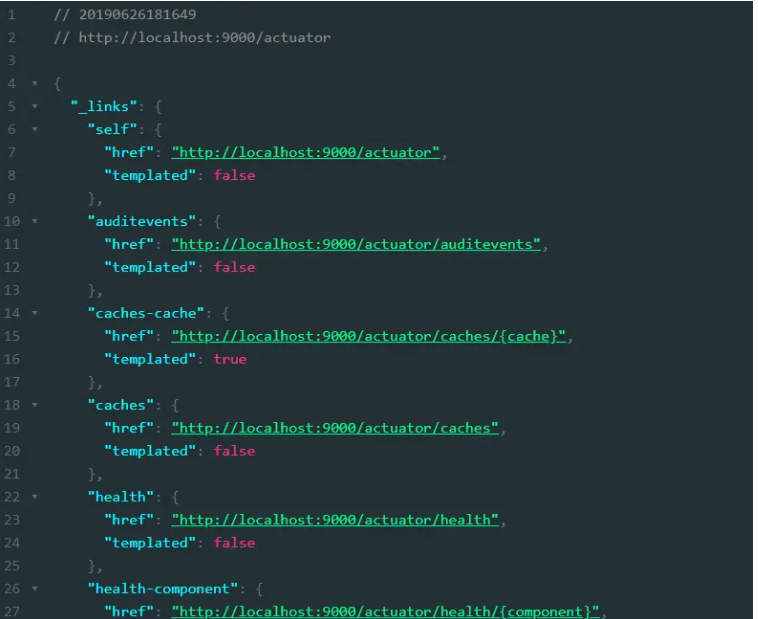

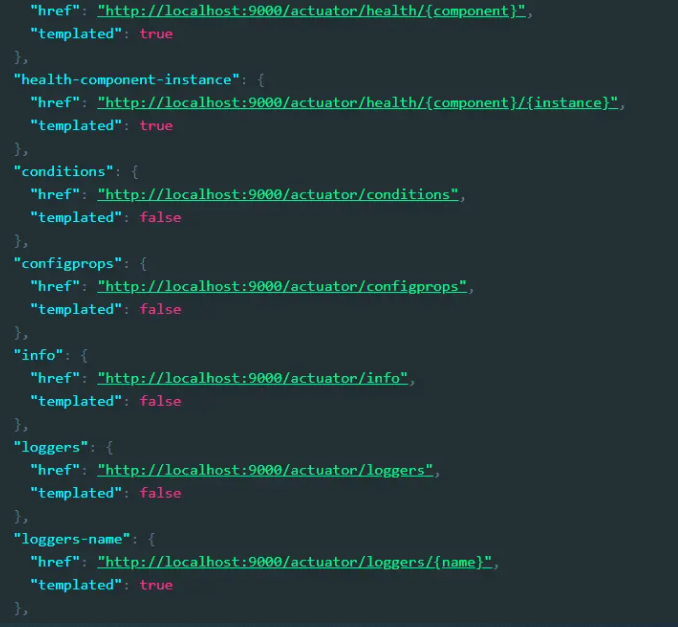

再次在浏览器访问 http://localhost:9000/actuator , 结果如下:




Notes:
虽然端点
enabled, 但是还需要exposed, 才能在Web端访问;health端点在默认情况下, 仅显示"status": "UP"; 如需显示详细信息, 配置:management.endpoint.health.show-details=always实际中, 请谨慎选择要开启的端点!
以上配置仅实现了对应用监控信息的获取, 但其实已经有专门用于展现这些 json 数据的管理端, 后续将实践一下SpringBoot Admin这套社区提供的可视化应用监控管理端。 SpringBoot Admin 文档对自己的介绍:
codecentric’ s Spring Boot Admin is a community project to manage and monitor your Spring Boot® applications.The applications register with our Spring Boot Admin Client(via HTTP) or are discovered using Spring Cloud®(e.g.Eureka, Consul).The UI is just a Vue.js application on top of the Spring Boot Actuator endpoints.
