Bokeh可视化在Django中部署指南

系统：Windows 7语言版本：Anaconda3-4.3.0.1-Windows-x86_64编辑器：pycharm-community-2016.3.2bokeh：0.12.7

Part 1：使用场景介绍

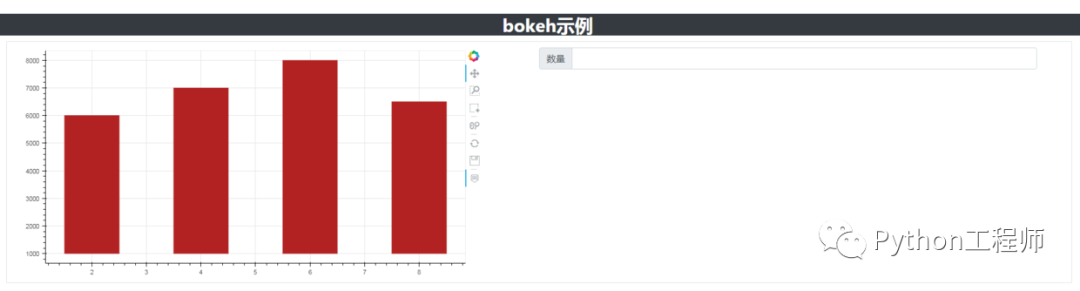

前端效果

Part 2：前端代码

{% load staticfiles %}                                                                                         {{ script |safe }}

bokeh示例




                                        {{ graph |safe }}



                            数量

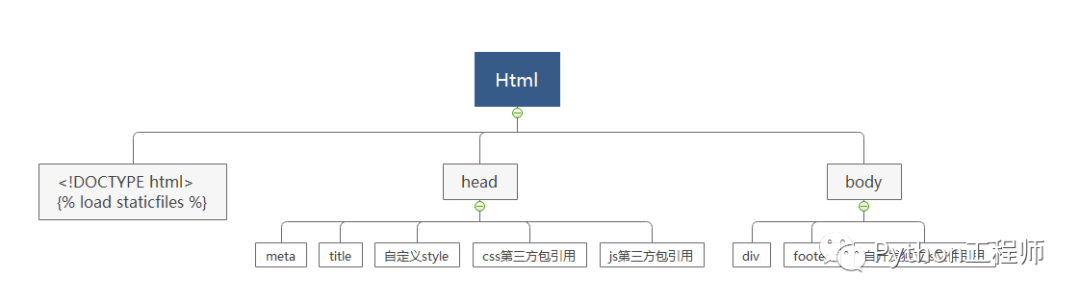

代码结构

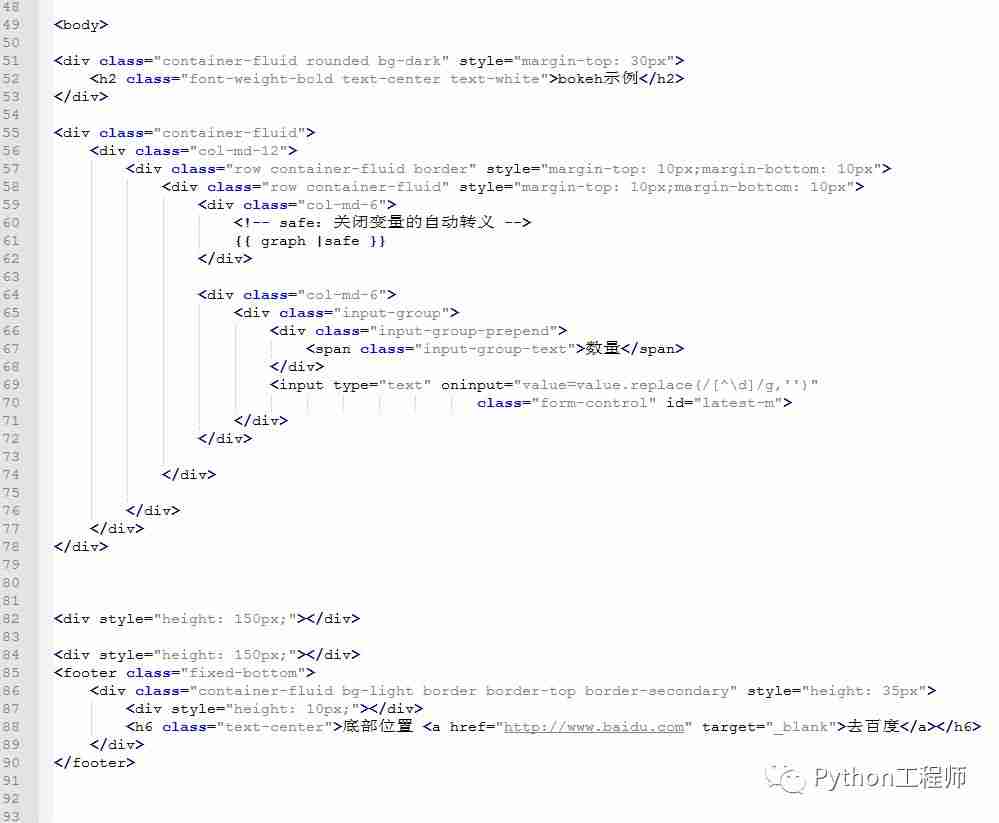

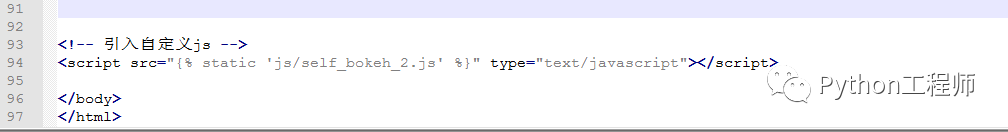

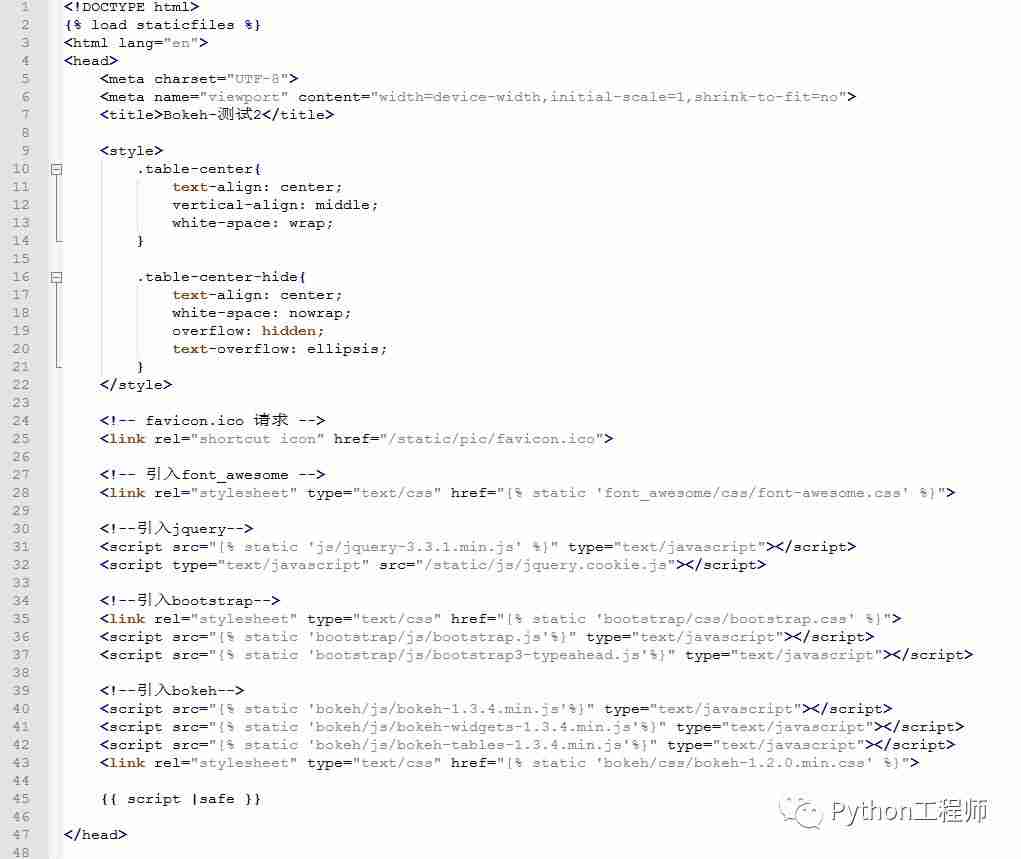

代码截图

Part 3：前端代码解读

Part 4：后端代码

View类

from django.shortcuts import renderfrom django.views.generic.base import Viewfrom bokeh.plotting import figure, output_file, showfrom bokeh.resources import CDNfrom bokeh.embed import componentsclass Test2View(View):    def get(self, request):        tools_set = "hover,pan,wheel_zoom,box_zoom,reset,save,box_select"        p = figure(plot_width=800, plot_height=400, tools=tools_set)        p.vbar(x=[2, 4, 6, 8], width=1, bottom=1000,               top=[6000, 7000, 8000, 6500],               color="firebrick")        script, div = components(p, CDN)        return render(request, 'bokeh_example_2.html', {            'script': script,            'graph': div,        })

url地址

from django.urls import re_path, pathfrom .views import Test1View, Test2Viewapp_name = "bokeh_examples"urlpatterns = [    re_path('^test1/$', Test1View.as_view(), name='test1'),    re_path('^test2/$', Test2View.as_view(), name='test2'),]

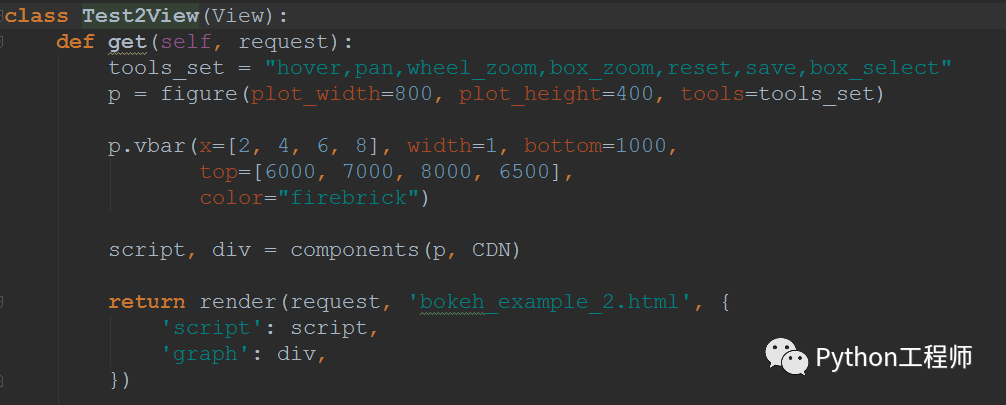

代码截图

Part 5：部分代码解读
