Java怎么利用深度优先和广度优先求解迷宫路径
作者：NorthPath
时间：2023-04-27
来源：互联网
浏览：0
深度优先实现效果示例代码importjava.awt.*;importjavax.swing.*;publicclassAlgoFrameextendsJFrame{privateintcanvasWidth;privateintcanvasHeight;publicAlgoFrame(Stringtitle,intcanvasWidth,intcanvasHeight){super(title);this.canvasWidth=canvasWidth;this.canvasHeight=canvasH
深度优先

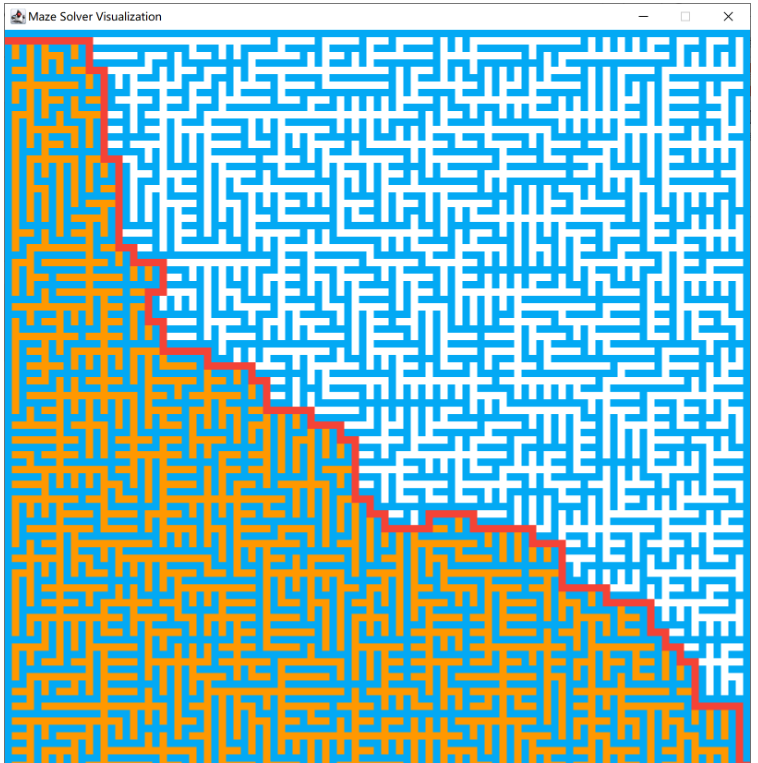

实现效果
示例代码
import java.awt.*;
import javax.swing.*;
public class AlgoFrame extends JFrame{
private int canvasWidth;
private int canvasHeight;
public AlgoFrame(String title, int canvasWidth, int canvasHeight){
super(title);
this.canvasWidth = canvasWidth;
this.canvasHeight = canvasHeight;
AlgoCanvas canvas = new AlgoCanvas();
setContentPane(canvas);
pack();
setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
setResizable(false);
setVisible(true);
}
public AlgoFrame(String title){
this(title, 1024, 768);
}
public int getCanvasWidth(){return canvasWidth;}
public int getCanvasHeight(){return canvasHeight;}
// data
private MazeData data;
public void render(MazeData data){
this.data = data;
repaint();
}
private class AlgoCanvas extends JPanel{
public AlgoCanvas(){
// 双缓存
super(true);
}
@Override
public void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2d = (Graphics2D)g;
// 抗锯齿
// RenderingHints hints = new RenderingHints(
// RenderingHints.KEY_ANTIALIASING,
// RenderingHints.VALUE_ANTIALIAS_ON);
// hints.put(RenderingHints.KEY_RENDERING, RenderingHints.VALUE_RENDER_QUALITY);
// g2d.addRenderingHints(hints);
// 具体绘制
int w = canvasWidth/data.M();
int h = canvasHeight/data.N();
for(int i = 0 ; i < data.N() ; i ++ )
{
for(int j = 0 ; j < data.M() ; j ++){
if (data.getMaze(i, j) == MazeData.WALL)
AlgoVisHelper.setColor(g2d, AlgoVisHelper.LightBlue);
else
AlgoVisHelper.setColor(g2d, AlgoVisHelper.White);
if(data.path[i][j])
AlgoVisHelper.setColor(g2d, AlgoVisHelper.Orange);
if(data.result[i][j])
AlgoVisHelper.setColor(g2d, AlgoVisHelper.Red);
AlgoVisHelper.fillRectangle(g2d, j * w, i * h, w, h);
}
}
}
@Override
public Dimension getPreferredSize(){
return new Dimension(canvasWidth, canvasHeight);
}
}
}
import java.awt.*;
import java.awt.geom.Ellipse2D;
import java.awt.geom.Rectangle2D;
import java.lang.InterruptedException;
public class AlgoVisHelper {
private AlgoVisHelper(){}
public static final Color Red = new Color(0xF44336);
public static final Color Pink = new Color(0xE91E63);
public static final Color Purple = new Color(0x9C27B0);
public static final Color DeepPurple = new Color(0x673AB7);
public static final Color Indigo = new Color(0x3F51B5);
public static final Color Blue = new Color(0x2196F3);
public static final Color LightBlue = new Color(0x03A9F4);
public static final Color Cyan = new Color(0x00BCD4);
public static final Color Teal = new Color(0x009688);
public static final Color Green = new Color(0x4CAF50);
public static final Color LightGreen = new Color(0x8BC34A);
public static final Color Lime = new Color(0xCDDC39);
public static final Color Yellow = new Color(0xFFEB3B);
public static final Color Amber = new Color(0xFFC107);
public static final Color Orange = new Color(0xFF9800);
public static final Color DeepOrange = new Color(0xFF5722);
public static final Color Brown = new Color(0x795548);
public static final Color Grey = new Color(0x9E9E9E);
public static final Color BlueGrey = new Color(0x607D8B);
public static final Color Black = new Color(0x000000);
public static final Color White = new Color(0xFFFFFF);
public static void strokeCircle(Graphics2D g, int x, int y, int r){
Ellipse2D circle = new Ellipse2D.Double(x-r, y-r, 2*r, 2*r);
g.draw(circle);
}
public static void fillCircle(Graphics2D g, int x, int y, int r){
Ellipse2D circle = new Ellipse2D.Double(x-r, y-r, 2*r, 2*r);
g.fill(circle);
}
public static void strokeRectangle(Graphics2D g, int x, int y, int w, int h){
Rectangle2D rectangle = new Rectangle2D.Double(x, y, w, h);
g.draw(rectangle);
}
public static void fillRectangle(Graphics2D g, int x, int y, int w, int h){
Rectangle2D rectangle = new Rectangle2D.Double(x, y, w, h);
g.fill(rectangle);
}
public static void setColor(Graphics2D g, Color color){
g.setColor(color);
}
public static void setStrokeWidth(Graphics2D g, int w){
int strokeWidth = w;
g.setStroke(new BasicStroke(strokeWidth, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND));
}
public static void pause(int t) {
try {
Thread.sleep(t);
// System.out.println("Dely");
}
catch (InterruptedException e) {
System.out.println("Error sleeping");
}
}
}
import java.awt.*;
import java.util.Stack;
public class AlgoVisualizer {
private static int DELAY = 10;
private static int blockSide = 8;
private MazeData data;
private AlgoFrame frame;
private static final int d[][] = {{-1,0}, {0, 1}, {1, 0}, {0, -1}}; //左下右上
public AlgoVisualizer(String mazeFile){
// 初始化数据
data = new MazeData(mazeFile);
int sceneHeight = data.N() * blockSide;
int sceneWidth = data.M() * blockSide;
// 初始化视图
EventQueue.invokeLater(() -> {
frame = new AlgoFrame("Maze Solver Visualization", sceneWidth, sceneHeight);
new Thread(() -> {
run();
}).start();
});
}
public void run(){
setData(-1, -1, false);
Stack stack = new Stack();
Position entrance = new Position(data.getEntranceX(), data.getEntranceY());
stack.push(entrance);
data.visited[entrance.getX()][entrance.getY()] = true;
boolean isSolved = false;
while (!stack.empty()) {
Position curPos = stack.pop();
setData(curPos.getX(), curPos.getY(), true);
if (curPos.getX() == data.getExitX() && curPos.getY() == data.getExitY()) {
isSolved = true;
findPath(curPos); //find the path from the final position
break;
}
for (int i = 0; i < 4; i++) {
int newX = curPos.getX() + d[i][0];
int newY = curPos.getY() + d[i][1];
if (data.inArea(newX, newY) && !data.visited[newX][newY] &&
data.getMaze(newX, newY) == MazeData.ROAD) {
stack.push(new Position(newX, newY, curPos));
data.visited[newX][newY] = true;
}
}
}
if (!isSolved) {
System.out.println("the maze has no solution");
}
setData(-1, -1, false);
}
public void findPath(Position des) {
Position cur = des;
while (cur != null) {
data.result[cur.getX()][cur.getY()] = true;
cur = cur.getPrev();
}
}
private void setData(int x, int y, boolean isPath){
if (data.inArea(x, y)) {
data.path[x][y] = isPath;
}
frame.render(data);
AlgoVisHelper.pause(DELAY);
}
public static void main(String[] args) {
String mazeFile = "maze_101_101.txt";
AlgoVisualizer vis = new AlgoVisualizer(mazeFile);
}
}
import java.io.BufferedInputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.util.Scanner;
public class MazeData {
public static final char ROAD = ' ';
public static final char WALL = '#';
private int N, M;
private char[][] maze;
private int entranceX, entranceY;
private int exitX, exitY;
public boolean[][] visited;
public boolean[][] path;
public boolean[][] result;
public MazeData(String filename){
if(filename == null)
throw new IllegalArgumentException("Filename can not be null!");
Scanner scanner = null;
try{
File file = new File(filename);
if(!file.exists())
throw new IllegalArgumentException("File " + filename + " doesn't exist");
FileInputStream fis = new FileInputStream(file);
scanner = new Scanner(new BufferedInputStream(fis), "UTF-8");
// 读取第一行
String nmline = scanner.nextLine();
String[] nm = nmline.trim().split("\\s+");
//System.out.print(nm[0] + ' ' + nm[1]);
N = Integer.parseInt(nm[0]);
// System.out.println("N = " + N);
M = Integer.parseInt(nm[1]);
// System.out.println("M = " + M);
// 读取后续的N行
maze = new char[N][M];
visited = new boolean[N][M];
path = new boolean[N][M];
result = new boolean[N][M];
for(int i = 0 ; i < N ; i ++){
String line = scanner.nextLine();
// 每行保证有M个字符
if(line.length() != M)
throw new IllegalArgumentException("Maze file " + filename + " is invalid");
for(int j = 0 ; j < M ; j ++)
{
maze[i][j] = line.charAt(j);
visited[i][j] = false;
path[i][j] = false;
result[i][j] = false;
}
}
}
catch(IOException e){
e.printStackTrace();
}
finally {
if(scanner != null)
scanner.close();
}
entranceX = 1;
entranceY = 0;
exitX = N - 2 ;
exitY = M - 1;
}
public int N(){ return N; }
public int M(){ return M; }
public int getEntranceX() {return entranceX;}
public int getEntranceY() {return entranceY;}
public int getExitX() { return exitX;}
public int getExitY() { return exitY;}
public char getMaze(int i, int j){
if(!inArea(i,j))
throw new IllegalArgumentException("i or j is out of index in getMaze!");
return maze[i][j];
}
public boolean inArea(int x, int y){
return x >= 0 && x < N && y >= 0 && y < M;
}
public void print(){
System.out.println(N + " " + M);
for(int i = 0 ; i < N ; i ++){
for(int j = 0 ; j < M ; j ++)
System.out.print(maze[i][j]);
System.out.println();
}
return;
}
}
public class Position {
private int x, y;
private Position prev;
public Position(int x, int y, Position prev ) {
// TODO Auto-generated constructor stub
this.x = x;
this.y = y;
this.prev = prev;
}
public Position(int x, int y) {
// TODO Auto-generated constructor stub
this(x, y, null);
}
public int getX() { return x;}
public int getY() { return y;}
public Position getPrev() {return prev;}
} 上面是深度优先的非递归遍历方法
下面是广度优先的遍历方法
广度优先

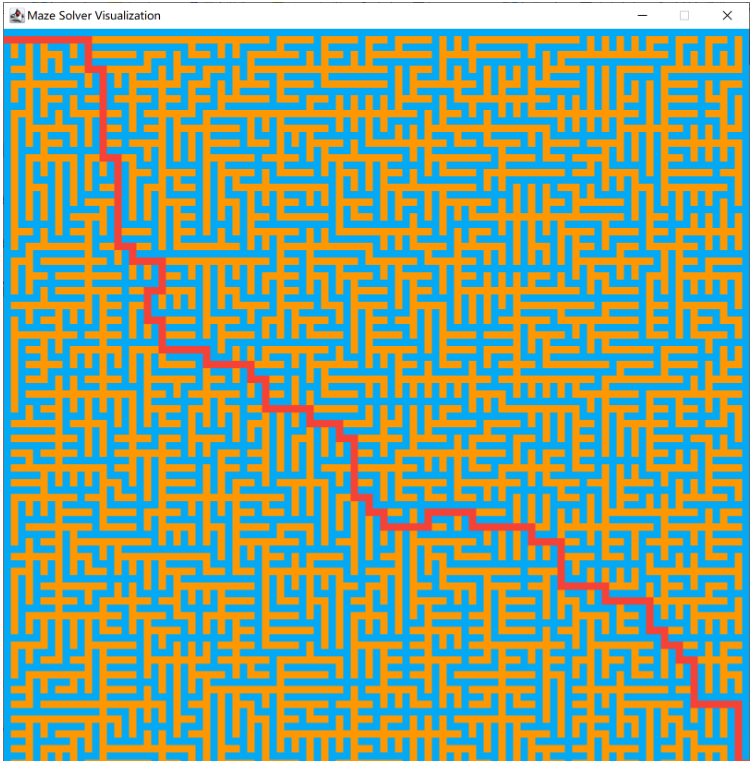

实现效果
示例代码
import java.awt.*;
import java.util.LinkedList;
import java.util.Stack;
public class AlgoVisualizer {
private static int DELAY = 10;
private static int blockSide = 8;
private MazeData data;
private AlgoFrame frame;
private static final int d[][] = {{-1,0}, {0, 1}, {1, 0}, {0, -1}}; //左下右上
public AlgoVisualizer(String mazeFile){
// 初始化数据
data = new MazeData(mazeFile);
int sceneHeight = data.N() * blockSide;
int sceneWidth = data.M() * blockSide;
// 初始化视图
EventQueue.invokeLater(() -> {
frame = new AlgoFrame("Maze Solver Visualization", sceneWidth, sceneHeight);
new Thread(() -> {
run();
}).start();
});
}
public void run(){
setData(-1, -1, false);
LinkedList queue = new LinkedList();
Position entrance = new Position(data.getEntranceX(), data.getEntranceY());
queue.addLast(entrance);
data.visited[entrance.getX()][entrance.getY()] = true;
boolean isSolved = false;
while ( queue.size() != 0) {
Position curPos = queue.pop();
setData(curPos.getX(), curPos.getY(), true);
if (curPos.getX() == data.getExitX() && curPos.getY() == data.getExitY()) {
isSolved = true;
findPath(curPos); //find the path from the final position
break;
}
for (int i = 0; i < 4; i++) {
int newX = curPos.getX() + d[i][0];
int newY = curPos.getY() + d[i][1];
if (data.inArea(newX, newY) && !data.visited[newX][newY] &&
data.getMaze(newX, newY) == MazeData.ROAD) {
queue.addLast(new Position(newX, newY, curPos));
data.visited[newX][newY] = true;
}
}
}
if (!isSolved) {
System.out.println("the maze has no solution");
}
setData(-1, -1, false);
}
public void findPath(Position des) {
Position cur = des;
while (cur != null) {
data.result[cur.getX()][cur.getY()] = true;
cur = cur.getPrev();
}
}
private void setData(int x, int y, boolean isPath){
if (data.inArea(x, y)) {
data.path[x][y] = isPath;
}
frame.render(data);
AlgoVisHelper.pause(DELAY);
}
public static void main(String[] args) {
String mazeFile = "maze_101_101.txt";
AlgoVisualizer vis = new AlgoVisualizer(mazeFile);
}

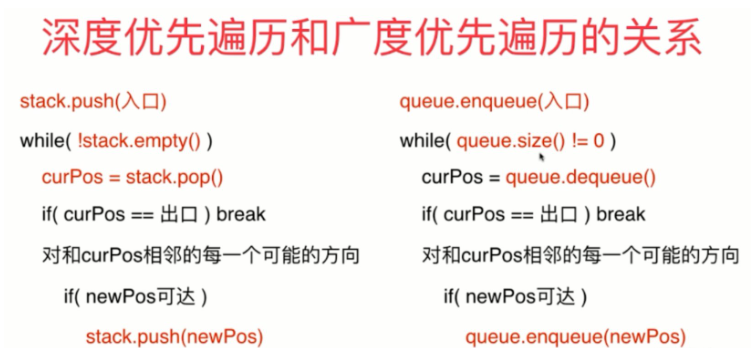

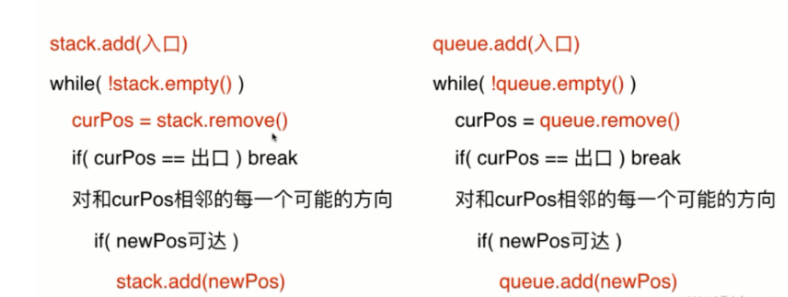

} 知识点总结

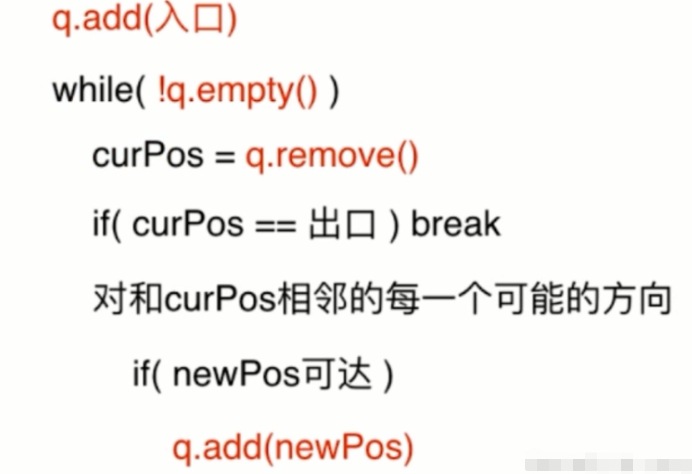

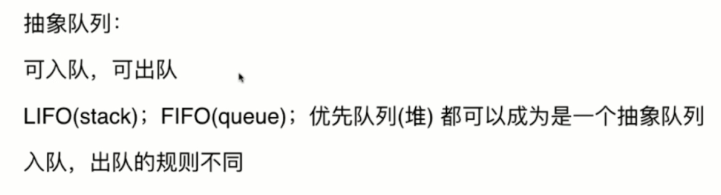

q为抽象的队列
作者最新文章
贵州省住建厅与贝壳集团签署旅居战略合作：五大维度落地方案解析
2026-09-08 18:13
上海链家安住APP：业主主动卖房功能与成交数据解析
2026-09-08 18:11
如何批量将PPT转成PDF格式？PPT转PDF工具怎么选？
2026-09-04 16:03
PDF文件怎么压缩？3个小技巧帮你减小体积
2026-09-03 18:03
小批量试产总结报告：新产品量产导入评审实战指南
2026-09-02 19:48
相关文章
更多
C++动态数组初始化怎么写？常用语句与代码示例
深入解析C++中动态数组的初始化机制，涵盖new操作符的不同用法、基本类型与类对象的初始化差异，以及为何在现代C++开发中应优先使用std::vector。
谷歌浏览器Mac版入口
谷歌浏览器Mac版官方安装指南 谷歌浏览器Mac版官方安装入口是https://www.google.com/chrome/，需macOS 12+系统、500MB空间，下载.dmg后拖入应用程序安装，支持多设备同步、性能优化与隐私保护功能。 苹果电脑Chrome的安装入口究竟在哪里？这个问题最近可是
Chrome浏览器JS脚本不运行怎么办
Chrome中JavaScript未执行需依次检查：一、移除站点级禁用并添加允许域名；二、开启全局JavaScript开关；三、禁用干扰扩展；四、在开发者工具中启用JavaScript；五、重置内容设置为默认。 有时在Chrome里打开网页，会发现交互按钮点了没反应，数据加载不出来，页面仿佛“静止”
IE浏览器怀旧版在线网址
IE浏览器怀旧版在线网址：一次精准的技术时光回溯 最近，不少老用户和怀旧爱好者在反复搜索一个问题：那个经典的Internet Explorer，如今还能在哪里原汁原味地体验到？答案指向一个特定的地址：https://ie.microsoft.com/legacy/。 这个网站远不止是一个简单的“皮肤
chrome搜索免验证入口
Chrome官方免验证入口为https://www.google.cn/chrome/，提供全平台安装包、免登录即用、本地化安全机制及引擎级性能优化。 到底该去哪里找正版、免费且无需繁琐验证的Chrome浏览器入口？这个问题困扰了不少网友。今天，我们就来直通核心，为大家详细拆解Chrome引擎的官方
java heap space 选型思路：使用场景与区别整理
Java堆是JVM存储对象的核心内存区域，配置需结合场景：单体应用适中设置；大数据处理需大堆并关注GC停顿；微服务强调快速启动；高并发需精细划分堆区域。关键参数-Xms和-Xmx建议等值以稳定性能。垃圾回收器选择影响效率，如G1适用于大堆，ZGC可实现低停顿。内存错误时需监控堆状态。
2026-08-08
0
java heap space 使用中遇到的问题怎么解决
Java堆内存溢出错误通常因内存泄漏、数据处理需求过大或JVM参数配置不当引起。排查时可借助jmap、堆转储及MAT等工具定位问题。解决方案包括调整JVM内存参数（如-Xmx）、修复代码中的内存泄漏、优化大数据处理逻辑，并建立持续监控与预防机制，以保障应用稳定运行。
2026-08-08
0
java xml 选型思路：使用场景与区别整理
XML在Java开发中用于配置、数据交换等场景。解析方式主要有DOM、SAX、StAX及第三方库。DOM适合操作小文件，SAX/StAX适合处理大文件流，JAXB用于对象与XML映射。选型需结合数据大小、内存、性能及团队熟悉度，现代框架常封装底层解析。
2026-08-08
0
using namespace 使用中遇到的问题怎么解决
命名空间的基本概念与常见引入问题在C++等编程语言中，命名空间（namespace）是一种将代码标识符（如变量、函数、类名）封装在特定名称下的机制，其主要目的是避免命名冲突，尤其是在大型项目或使用多个第三方库时。使用“using namespace”指令可以将指定命名空间中的所有名称引入当前作用域，
2026-08-07
1
热门文章
更多
精品专题
更多
Mac软件
更多
WINDOWS
更多
Windows 10
Windows
Windows 10 是一款微软推出的经典操作系统，拥有硬件兼容性与多任务处理能力。它更偏向把系统状态查看和常用调节动作放在一起，适合需要持续观察和微调设备状态的场景。
极度公式
Windows/macOS/Linux
极度公式是一款跨平台专业LaTeX公式识别编辑软件，支持OCR公式识别和多平台编辑。和使用说明，避免使用，享受完整功能与稳定支持。做扫描整理、文字提取和表格转换时，它能把识别后的处理步骤接得更顺，资料录入这类场景会省下不少时间。
