怎么用Springboot快速整合shiro安全框架

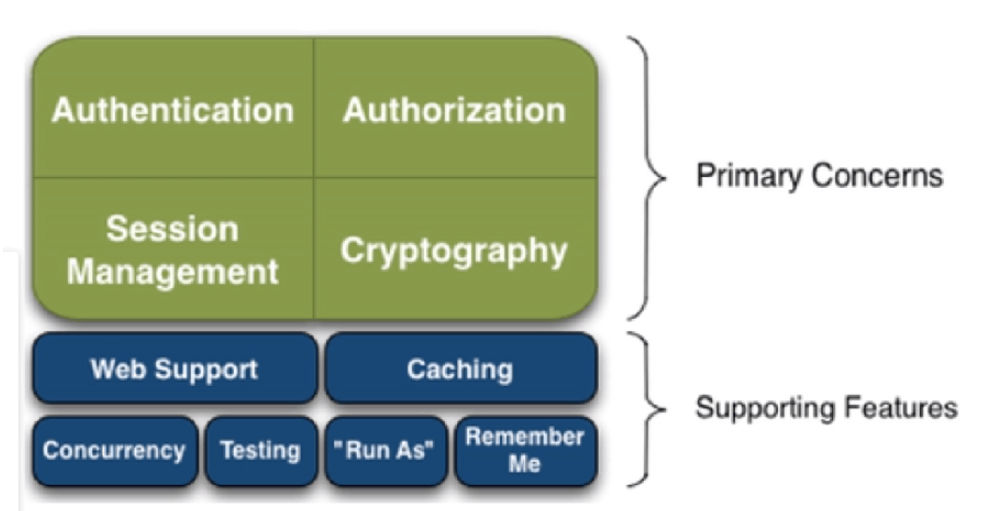

咱们先来普及一下什么是shiro，shiro原名Apache Shiro 是一个Java 的安全（权限）框架。Shiro 可以非常容易的开发出足够好的应用，其不仅可以用在JavaSE环境，也可以用在JavaEE环境。Shiro可以完成，认证，授权，加密，会话管理，Web集成，缓存等高级应用。如图看shiro的功能和架构图：

话不多说，Springboot整合shiro,咱们直接上代码

pom.xml文件

    4.0.0

        org.springframework.boot
        spring-boot-starter-parent
        2.6.11


    com.example
    demo02
    0.0.1-SNAPSHOT
    demo02
    demo02


        1.8




            org.apache.shiro
            shiro-spring
            1.4.1



            org.mybatis.spring.boot
            mybatis-spring-boot-starter
            2.1.0


            mysql
            mysql-connector-java
           8.0.31



            log4j
            log4j
            1.2.17



            com.alibaba
            druid
            1.1.12



            org.projectlombok
         lombok
           1.18.18
            compile




            org.springframework.boot
            spring-boot-starter-thymeleaf


            org.thymeleaf
            thymeleaf


            org.thymeleaf.extras
            thymeleaf-extras-java8time


            org.springframework.boot
            spring-boot-starter-web



            org.springframework.boot
            spring-boot-starter-test
            test



            com.github.theborakompanioni
            thymeleaf-extras-shiro
            2.0.0








                org.apache.maven.plugins
                maven-compiler-plugin
                3.8.1

                    1.8
                    1.8
                    UTF-8



                org.springframework.boot
                spring-boot-maven-plugin




然后我们建立一个数据库 /*
Navicat MySQL Data Transfer

Source Server :
Source Server Version : 80030
Source Host : localhost:3306
Source Database : mybatis

Target Server Type : MYSQL
Target Server Version : 80030
File Encoding : 65001

Date: 2023-03-14 18:00:05
*/

SET FOREIGN_KEY_CHECKS=0;

– Table structure for user

DROP TABLE IF EXISTS user;
CREATE TABLE user (
id int NOT NULL AUTO_INCREMENT,
name varchar(255) DEFAULT NULL,
pwd varchar(255) DEFAULT NULL,
perms varchar(100) DEFAULT NULL,
PRIMARY KEY (id)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

– Records of user

INSERT INTO user VALUES (‘1’, ‘qin’, ‘d1b129656359e35e95ebd56a63d7b9e0’, ‘user:add’);
INSERT INTO user VALUES (‘2’, ‘hai’, ‘123’, ‘user:insert’);
INSERT INTO user VALUES (‘3’, ‘root’, ‘d1b129656359e35e95ebd56a63d7b9e0’, ‘user:update’);

application.yml文件

spring:
   datasource:
      username: xxxx
      password: xxxxxxxxxxxx
      url: jdbc:mysql://localhost:3306/mybatis
      driver-class-name: com.mysql.cj.jdbc.Driver
      type: com.alibaba.druid.pool.DruidDataSource
mybatis:
   mapper-locations: classpath:mapper/*tat.slowSqlMillis=500

controller层MyController类

package com.example.demo02.controller;

import lombok.extern.slf4j.Slf4j;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.IncorrectCredentialsException;
import org.apache.shiro.authc.UnknownAccountException;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.subject.Subject;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
@Slf4j
public class MyController {

    @RequestMapping("/")
    public  String toIndex(Model model){
        model.addAttribute("msg","hello,shiro");
        return "login";

    }


    @RequestMapping("/user/add")
    public String add(){
        return "user/add";
    }

    @RequestMapping("/user/update")
    public String update(){
        return  "user/update";
    }
    @RequestMapping("/toLogin")
    public String toLogin(){
        return "login";
    }

    @RequestMapping("/noauth")
    @ResponseBody
    public String noAuth(){
        return "未经授权不能访问此页面";
    }

    //登录操作
    @RequestMapping("/login")
    public String login(String username, String password, @RequestParam(defaultValue = "false")boolean rememberMe,Model model){
//使用shiro，编写认证操作
//1. 获取Subject
        Subject subject = SecurityUtils.getSubject();
//2. 封装用户的数据
        UsernamePasswordToken token = new UsernamePasswordToken(username, password,rememberMe);
//3. 执行登录的方法，只要没有异常就代表登录成功！
        try {
            subject.login(token); //登录成功！返回首页
            System.out.println("输出认证成功跳转页面");


            return "index";
        } catch (UnknownAccountException e) { //用户名不存在
            model.addAttribute("msg","用户名不存在");
            return "login";
        } catch (IncorrectCredentialsException e) { //密码错误
            model.addAttribute("msg","密码错误");
            return "login";
        }
    }
}

pojo层User

package com.example.demo02.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class User {
    private int id;
    private String name;
    private String pwd;
    private String perms;
}

config层配置两个类
第一个类ShiroConfig

package com.example.demo02.config;

import at.pollux.thymeleaf.shiro.dialect.ShiroDialect;
import org.apache.shiro.authc.credential.HashedCredentialsMatcher;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.LinkedHashMap;
import java.util.Map;

//声明为配置类
@Configuration
public class ShiroConfig {
    //创建 ShiroFilterFactoryBean
    @Bean
    public ShiroFilterFactoryBean
    getShiroFilterFactoryBean(@Qualifier("securityManager")DefaultWebSecurityManager securityManager){
        ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
//设置安全管理器
        shiroFilterFactoryBean.setSecurityManager(securityManager);
/*
添加Shiro内置过滤器，常用的有如下过滤器：
anon： 无需认证就可以访问
authc： 必须认证才可以访问
user： 如果使用了记住我功能就可以直接访问
perms: 拥有某个资源权限才可以访问
role： 拥有某个角色权限才可以访问
*
/

 */
        //进行一个拦截
    Map filterMap = new LinkedHashMap();
//    filterMap.put("/user/add","authc");
//    filterMap.put("/user/update","authc");
        //授权
//        filterMap.put("/user/add","perms[user:add]"); //大家记得注意顺序！

        filterMap.put("/user/add","perms[user:add]");
        filterMap.put("/user/update","perms[user:update]");
        filterMap.put("/user/*","authc");
        shiroFilterFactoryBean.setFilterChainDefinitionMap(filterMap);




    shiroFilterFactoryBean.setLoginUrl("/toLogin");
    //未授权页面
        shiroFilterFactoryBean.setUnauthorizedUrl("/noauth");
        return shiroFilterFactoryBean;
}
    //创建 DefaultWebSecurityManager
    @Bean(name = "securityManager")
    public DefaultWebSecurityManager
    getDefaultWebSecurityManager(@Qualifier("userRealm")UserRealm userRealm){
        DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
        //2创建加密对象，设置相关属性
        HashedCredentialsMatcher matcher = new HashedCredentialsMatcher();
        //2.1采用md5加密
        matcher.setHashAlgorithmName("md5");
        //2.2迭代加密次数
        matcher.setHashIterations(3);
        //3将加密对象存储到myRealm中
        userRealm.setCredentialsMatcher(matcher);


//关联Realm
        securityManager.setRealm(userRealm);
        return securityManager;
    }
    //创建 realm 对象
    @Bean
    public UserRealm userRealm(){
        return new UserRealm();
    }

    //配置ShiroDialect：方言，用于 thymeleaf 和 shiro 标签配合使用
    @Bean
    public ShiroDialect getShiroDialect(){
        return new ShiroDialect();
    }
}

UserRealm

package com.example.demo02.config;


import com.example.demo02.pojo.User;
import com.example.demo02.service.UserService;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.*;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.apache.shiro.subject.Subject;
import org.apache.shiro.util.ByteSource;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.List;

//自定义得UserRaelm
public class UserRealm extends AuthorizingRealm {

    @Autowired
    UserService userService;
    //授权
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        System.out.println("执行了=》授权doGetAuthorizationInfo");
        SimpleAuthorizationInfo info=new SimpleAuthorizationInfo();

//        info.addStringPermission("user:update");
        info.addStringPermission("user:add");
        //拿到当前用户登陆对象
        Subject subject= SecurityUtils.getSubject();
        User currentUser= (User) subject.getPrincipal();//拿到User对象
         info.addStringPermission(currentUser.getPerms());//设置当前用户对象

        return info;
    }

    //执行认证逻辑
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        System.out.println("执行了=>认证逻辑AuthenticationToken");
//假设数据库的用户名和密码
//        String name = "root";
//        String password = "123456";


//1.判断用户名
        UsernamePasswordToken userToken = (UsernamePasswordToken)token;
       //连接真实的数据库
        User user= userService.queryUserByName(userToken.getUsername());
//
        if(user==null){
            return  null;
        }
        Subject subject = SecurityUtils.getSubject();
        subject.getSession().setAttribute("loginUser",user);


//2. 验证密码,我们可以使用一个AuthenticationInfo实现类SimpleAuthenticationInfo
// shiro会自动帮我们验证！重点是第二个参数就是要验证的密码！
        return new SimpleAuthenticationInfo(user, user.getPwd(),ByteSource.Util.bytes("salt"),"");
//        if(user !=null){
//            AuthenticationInfo info = new SimpleAuthenticationInfo(
//                    token.getPrincipal(),
//                    user.getPwd(),
//                    ByteSource.Util.bytes("salt"),
//                    token.getPrincipal().toString()
//            );
//            return info;
//        }
//        return null;




    }
}

service层
先是类UserServiceImpl

package com.example.demo02.service;


import com.example.demo02.mapper.UserMapper;
import com.example.demo02.pojo.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
@Service
public class UserServiceImpl implements UserService {
    @Autowired
    UserMapper userMapper;
    @Override
    public User queryUserByName(String name) {
        return userMapper.queryUserByName(name);
    }
}

再是接口UserService

package com.example.demo02.service;

import com.example.demo02.pojo.User;

public interface UserService {
    public User queryUserByName(String name);
}

mapper层
接口Usermapper

package com.example.demo02.mapper;

import com.example.demo02.pojo.User;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;
import org.springframework.stereotype.Repository;

@Repository
//@Mapper
public interface UserMapper {
    @Select("select * from user where name=#{name}")
    public User queryUserByName(@Param("name") String name);
}

再就是前端resources里面的static和templates

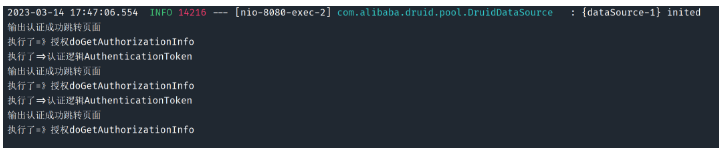

后端实现鉴权图

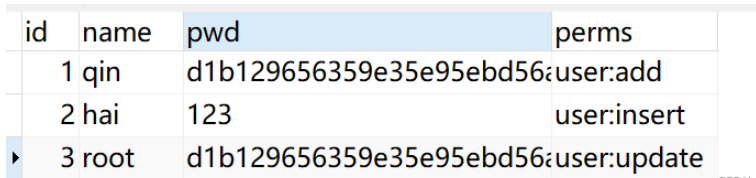

存入数据库的数据为加密文件
