如何在springboot中使用IDEA远程连接Debug

 1、先创建一个准备远程调试的Demo，注意构建项目的配置

	4.0.0

		org.springframework.boot
		spring-boot-starter-parent
		2.1.4.RELEASE


	com.remote.test
	remote_test
	0.0.1-SNAPSHOT
	remote_test
	Demo project for Spring Boot


		1.8




			org.springframework.boot
			spring-boot-starter



			org.springframework.boot
			spring-boot-starter-test
			test


			org.springframework.boot
			spring-boot-starter-web


			org.junit.jupiter
			junit-jupiter-api
			RELEASE
			test






				org.apache.maven.plugins
				maven-shade-plugin
				2.2


						org.springframework.boot
						spring-boot-maven-plugin
						2.1.4.RELEASE



					true
					false


							*:*

								META-INF/*.SF
								META-INF/*.DSA
								META-INF/*.RSA






						package

							shade


							${project.artifactId}-${project.version}-all


									META-INF/spring.handlers


									META-INF/spring.factories


									META-INF/spring.schemas




                                    com.remote.test.remote_test.RemoteTestApplication









package com.remote.test.remote_test;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.Map;


@RestController
@RequestMapping("remote/test")
public class UserController {

    private static final Logger logger = LoggerFactory.getLogger(UserController.class);


    @PostMapping("selectByUserId")
    public String selectUserInfo(@RequestParam("userId") String userId) {
        try {
            Map userInfo = new HashMap<>();
            userInfo.put("userId",userId);
            userInfo.put("age",23);
            userInfo.put("name","yanshao");
            userInfo.put("address","shanghai");
            logger.info("Query user information by user ID. userInfo: {}",userInfo.toString());
            return this.success(userInfo);
        } catch (Exception e) {
            logger.error("Query user information by user ID. userId:{} ", userId, e);
            return this.fail();
        }
    }

    private String success(Object data){
        Map res = new HashMap<>();
        res.put("code",0);
        res.put("desc","success");
        res.put("data",data);
        return res.toString();
    }

    private String fail(){
        Map res = new HashMap<>();
        res.put("code",1);
        res.put("desc","fail");
        return res.toString();
    }

}

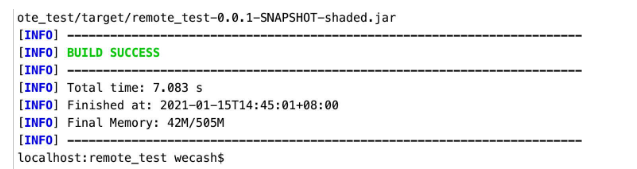

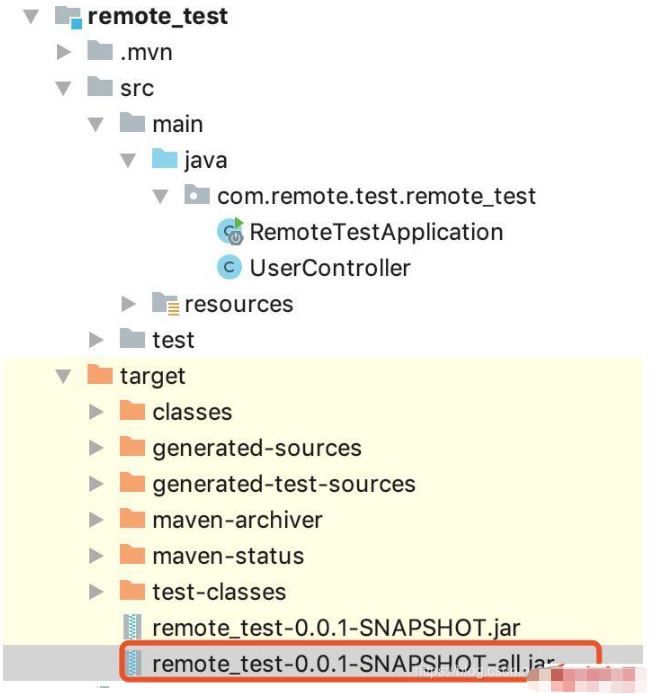

2、打包

输入：mvn clean package，（大概需要等几分钟），最好在构建之前指定本地repository，就不需要重新下载jar包了。

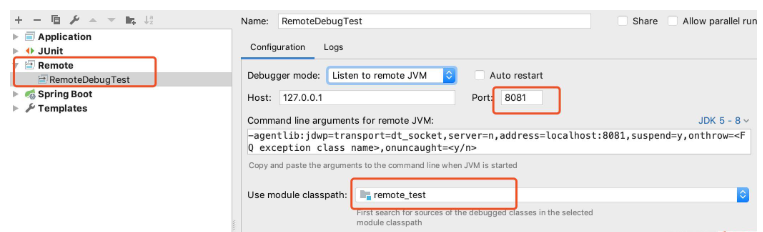

3、在IDEA配置远程Debug

指定socket port = 8081，指定准备debug的模块

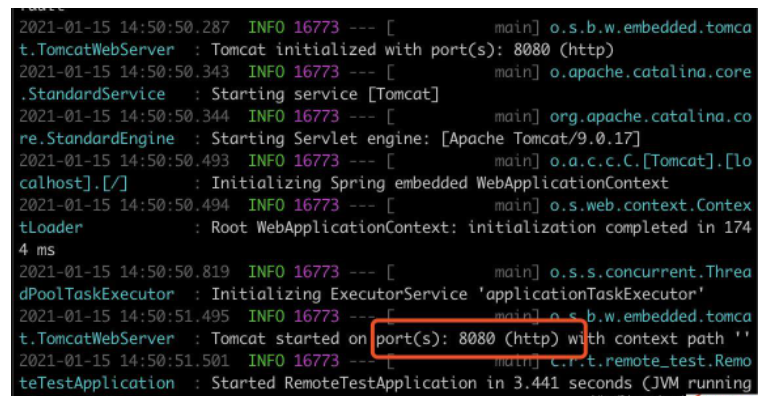

4、在终端启动刚才打好的jar包

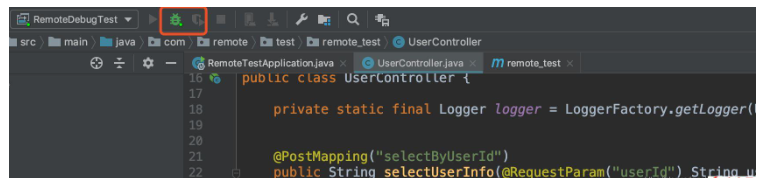

a. 先在IDEA启动debug

b. 然后在终端输入命令：java -agentlib:jdwp=transport=dt_socket,server=n,address=localhost:8081 -jar remote_test-0.0.1-SNAPSHOT-all.jar

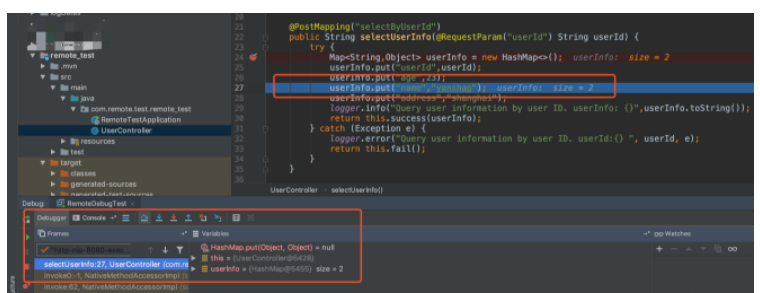

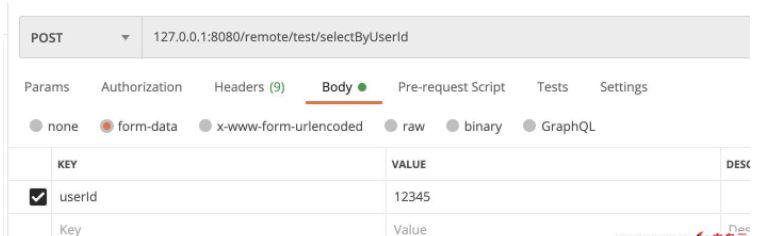

5、测试

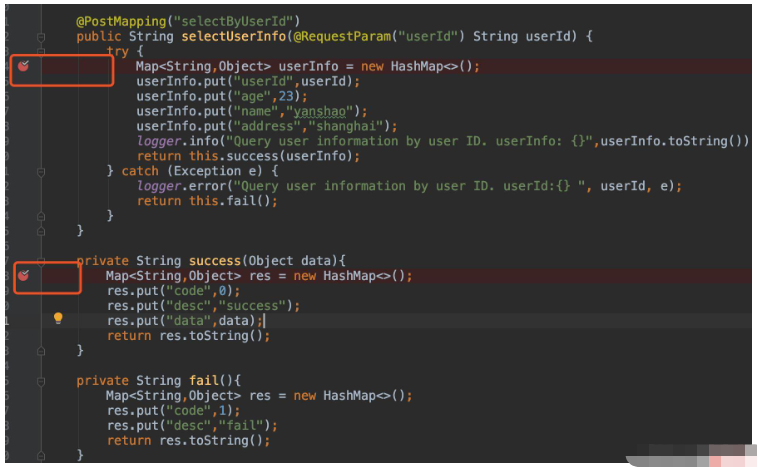

在准备请求的接口上标记断点

注意：必须先在IDEA启动Debug，然后再启动项目

➜ Desktop java -agentlib:jdwp=transport=dt_socket,server=n,address=localhost:8081 -jar remote_test-0.0.1-SNAPSHOT-all.jar

ERROR: transport error 202: connect failed: Connection refused
ERROR: JDWP Transport dt_socket failed to initialize, TRANSPORT_INIT(510)
JDWP exit error AGENT_ERROR_TRANSPORT_INIT(197): No transports initialized [debugInit.c:750]
